The TR3-Series of box conveyor belts are designed to move materials from one level of a building to another. While our other belt series are primarily used to handling loose materials, like dirt, sand, and gravel, the TR3-Series is used mainly for boxes, containers, bags, sacks, and bins. If you need to move bulky objects, such as cartons, either small or large, from one story to another, these belt conveyors are the material movers that you need.

The flat-top slider beds of the TR3-Series box conveyors are available in 16 and 20-inch widths. The belt is made of two-ply black 150 belting and is available in either a rough or smooth surface style. The standard conveyor lengths range from 10 feet up to 28 feet in two-foot increments and a 31-foot model is also available. If you need a custom length for your application, Redline Systems can work with you to build the box conveyor that exactly suits your needs.

  • Belt Widths:  16in,  20in and 24in  (other widths available upon request)

  • Strong Truss Frame

  • Mezzanines

  • Boxes, Totes, Tires, Bags, Crates, Furniture

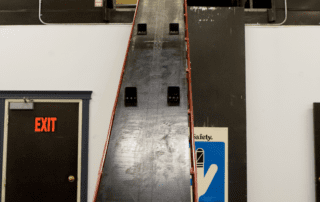

TR3-Series Conveyor moving boxes

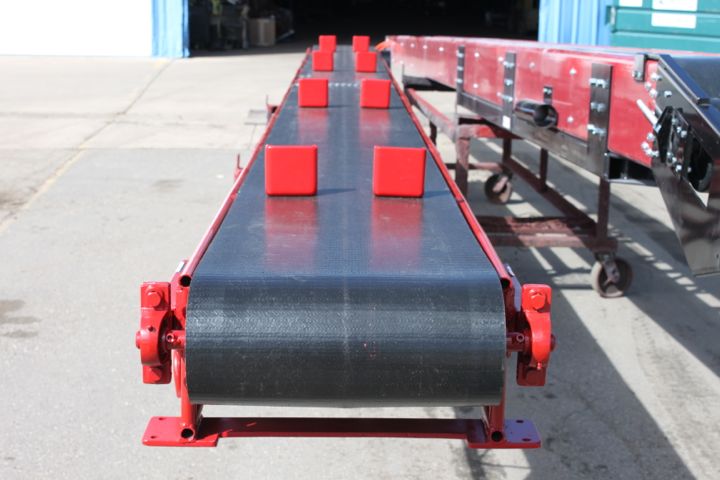

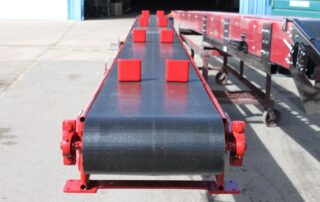

Front view of conveyor

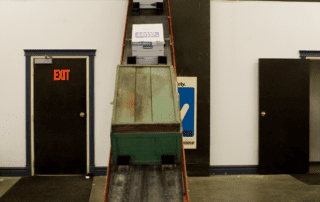

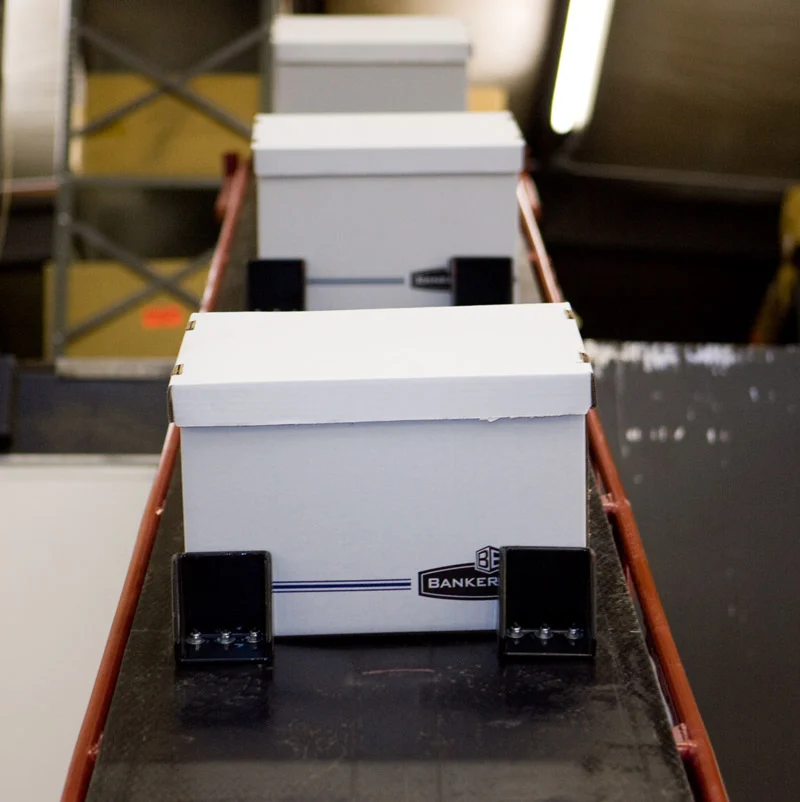

Conveyor with boxes on it

Specifications

TR-Series Conveyor Features
  • Bed– 16″ or 20″ wide belt slider bed
  • Frame: Strong, Rugged Truss style welded frame.
  • Belt: 16″ or 20″ wide, 2 ply 150 black rough-top x bare

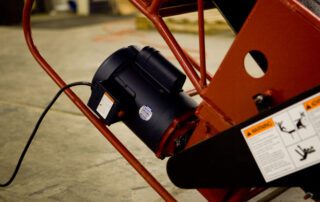

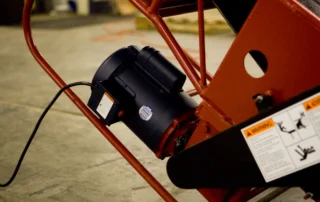

  • Drive: Electric, gas, or hydraulic motor available (see options)
  • Cleats– 4″ tall Cleat, bolted on 72″ centers
  • Bearings– Sealed, pre-lubricated, self-aligning, ball bearings
  • Drive pulley– 7″ in diameter, open caged for self-cleaning
  • Tail Pulley– 6″ in diameter, open caged for self-cleaning
TR-Series Models
CONVEYOR MODEL OVERALL LENTH CENTER PULLEY DISTANCE WEIGHT (LBS.)
TR-3-16 16 feet 14′-8″ 375
TR-3-21 21 feet 19′-8″ 430
TR-3-26 26 feet 24′-8″ 475
TR-2-31 31 feet 29′-8″ 615
TR-2-42 42 feet 39′-8″ 675

Literature and Manuals

TR3-Series spec sheet

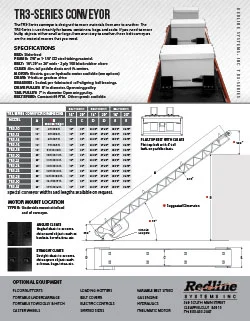

TR-Series Specification Sheet
C-Series Manual
TR3-Series Manual
RM-2318 Ready Mix Conveyor Spec Sheet
Quote Request Data Sheet

For more information about our Belt Conveyors, contact our team today.
