Project Description

At Redline Systems, we manufacture the highest variety of incline cleated belt conveyors available on the market. Our team carries over 40 years of experience in designing quality conveyor systems. The reliability of your conveyor is important, but even more so is your safety. Our highest priority is to ensure you have high-functioning equipment you can rely on.

The design of the C-Series makes them especially suited for steep excavation work in tight spaces.  This conveyor is one of the most popular material handling conveyors we construct for several reasons:
The C-Series belt has a narrow bed design. Made for a 10-inch belt, this conveyor fits into small, narrow openings. This makes it ideal for basement excavation and clean-out. If small spaces are an issue, this belt is perfect for you.
The belt is durably made and is equipped with two-inch tall rubber bucket type cleats. Frame construction consists of truss design constructed of square tubing. This makes the conveyor very strong and durable.

  • Basement Excavation

  • Wood Chips

  • Mulch & Nurserys

  • Tight Spaces

  • Portable Strong Frame

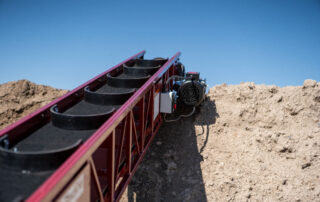

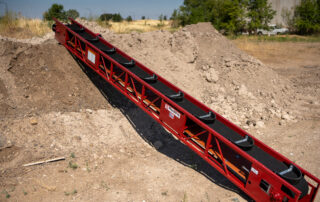

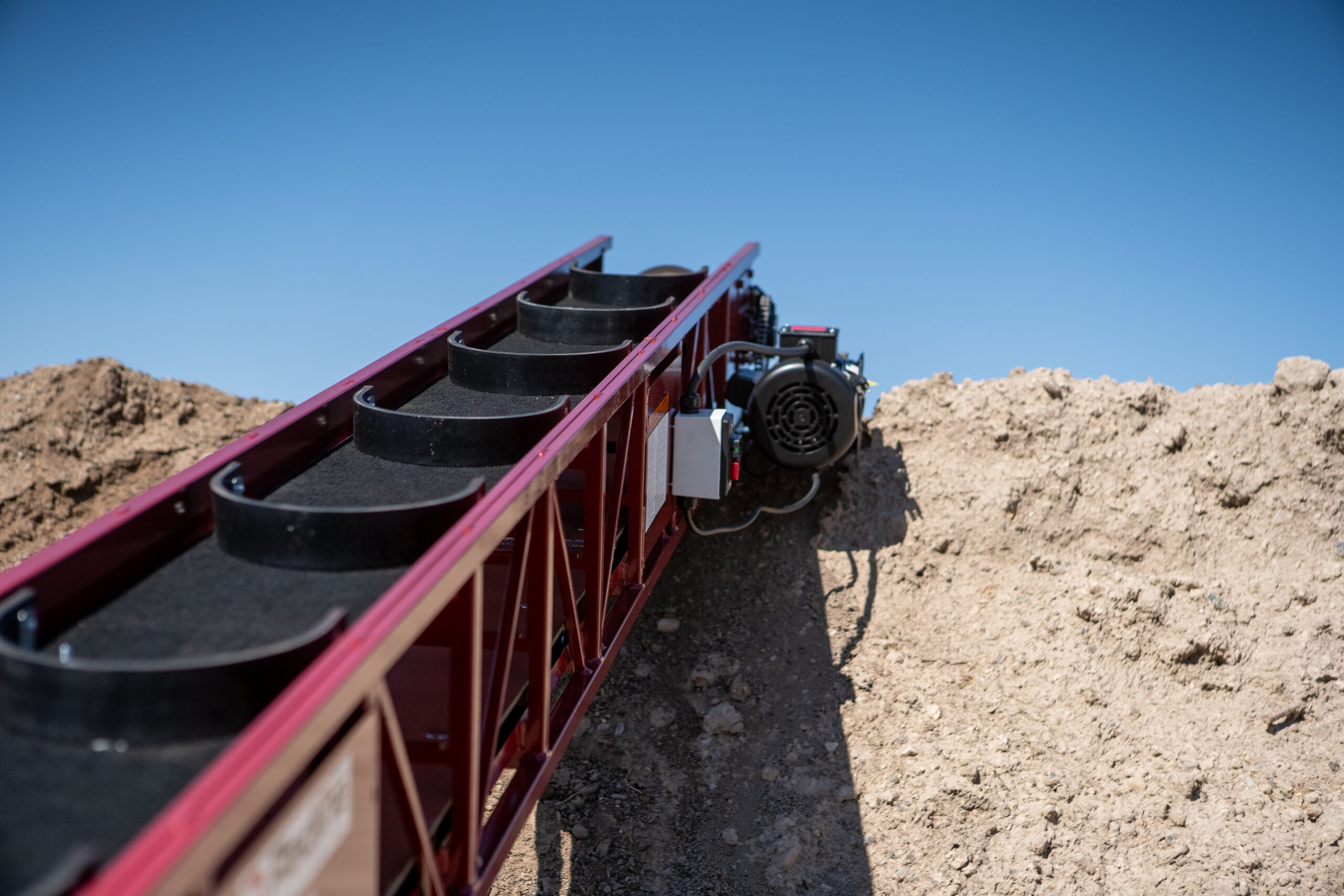

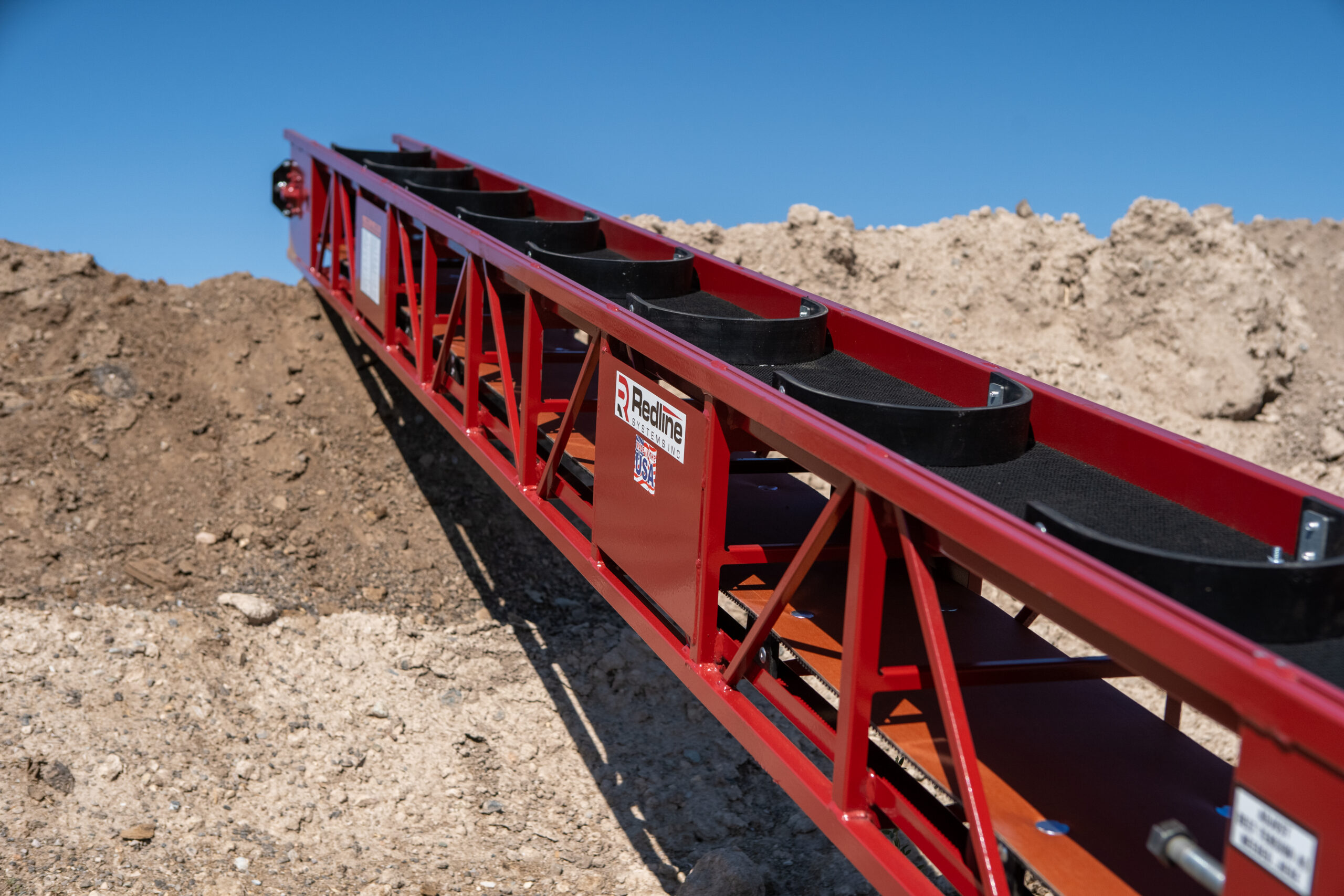

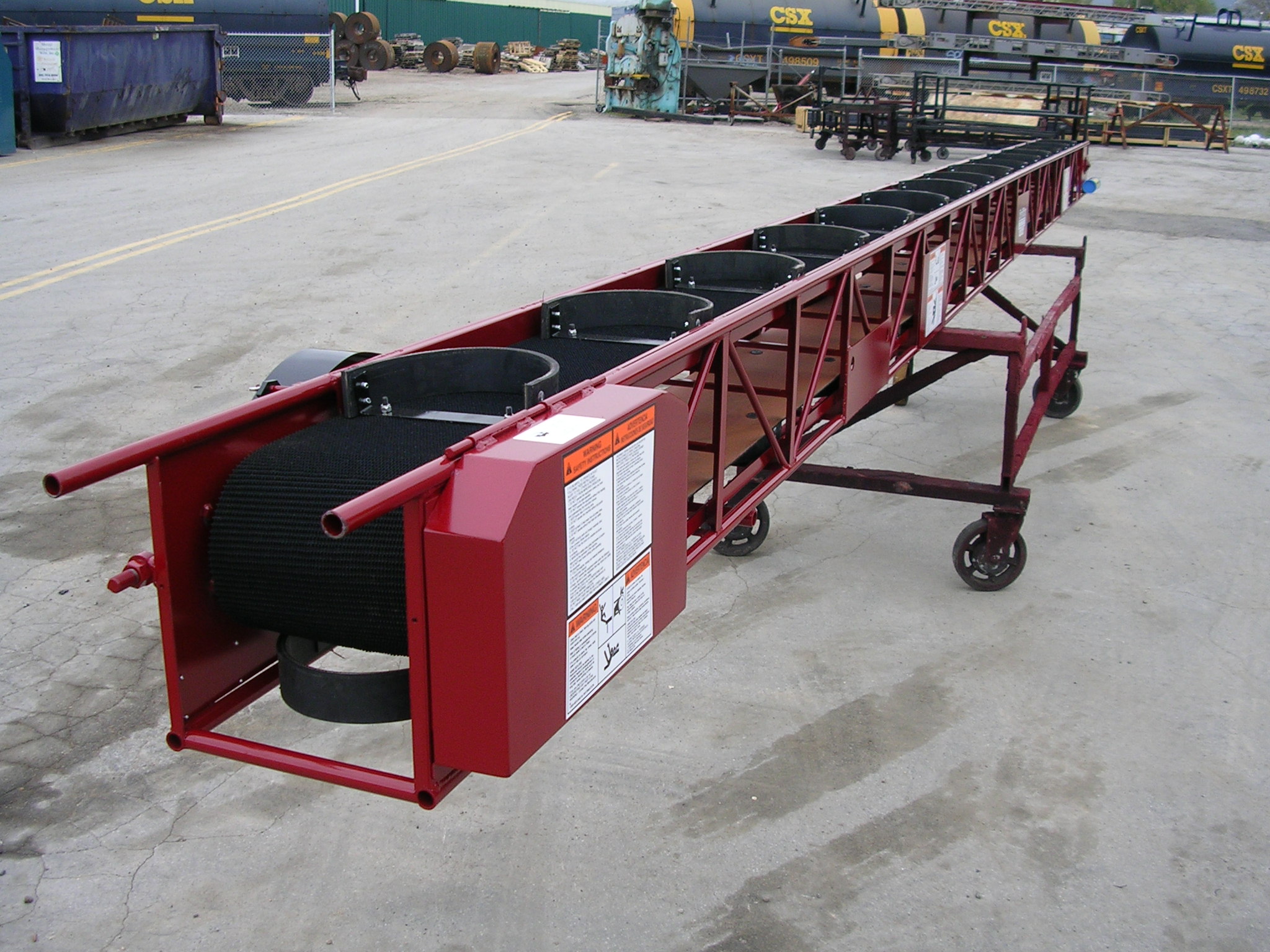

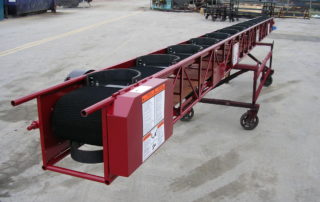

C-series Dirt Conveyor

Specifications

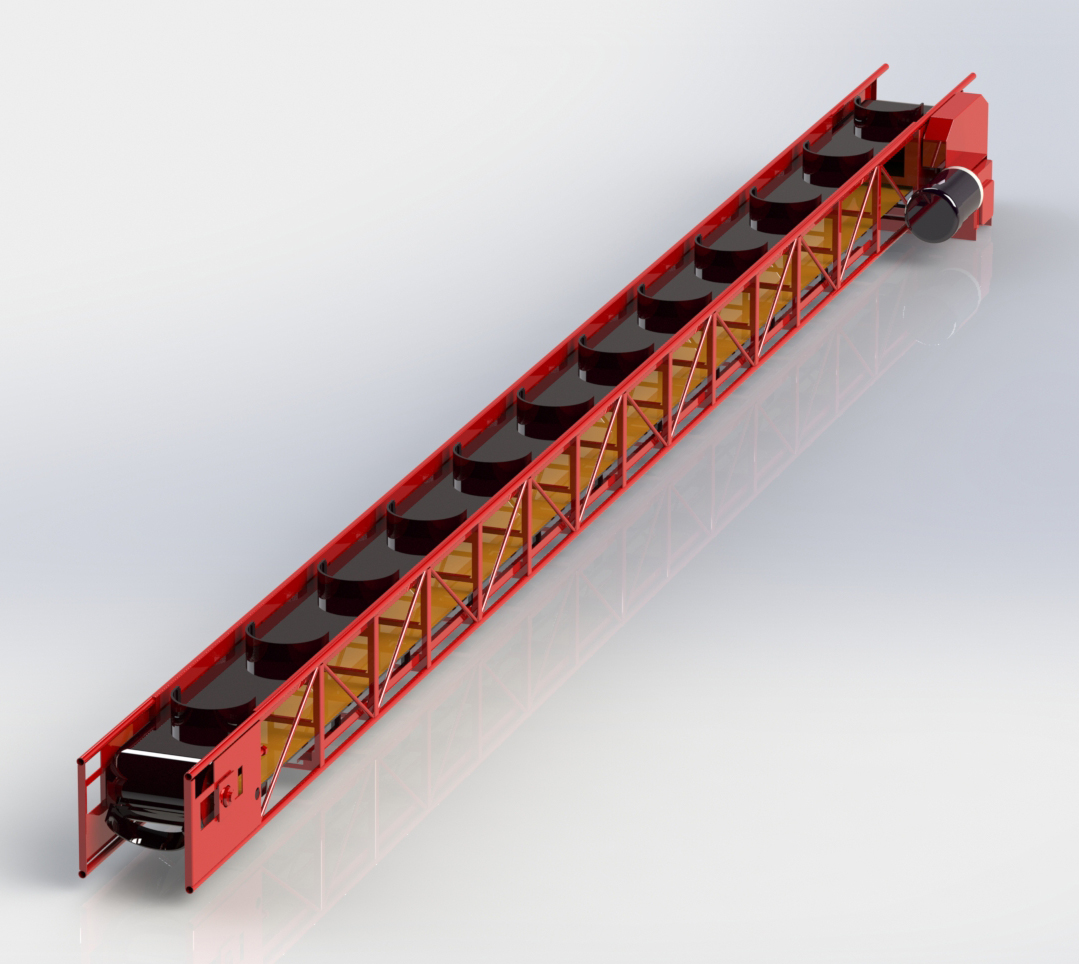

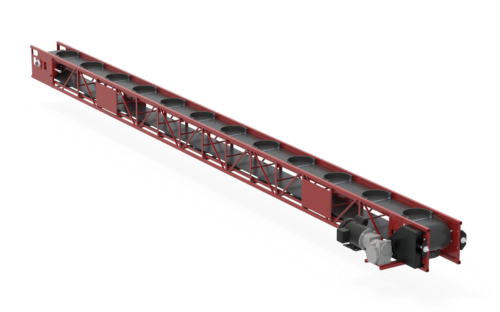

C-Series Incline Cleated Belt Conveyor Features
  • Bed– 10″ wide slider bed with 2″ tall side guards

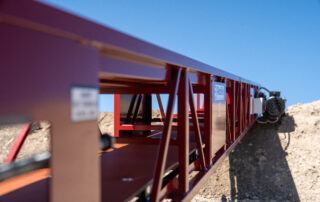

  • Frame: Strong, Rugged Truss style welded frame.
  • Belt: 10″ wide, 2 ply 150 black rough-top x bare.

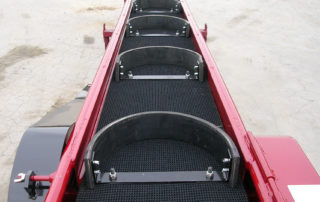

  • Cleats: 2″ tall U-shape bucket cleat on 20″ centers
  • Drive: Electric, gas, or hydraulic motor available (see options).
  • Cleats– 2″ tall rubber bucket cup, bolted on 20″ centers.
  • Bearings– Sealed, pre-lubricated, self-aligning, ball bearings.
  • Drive pulley– 7″ in diameter. Open caged for self-cleaning.
  • Tail Pulley– 6″ in diameter. Open caged for self-cleaning.
C-Series Models
CONVEYOR MODELOVERALL LENTHCENTER PULLEY DISTANCEWEIGHT (LBS.)
C-3-1616 feet14′-8″275
C-3-2121 feet19′-8″330
C-3-2626 feet24′-8″375
C-2-3131 feet29′-8″515
C-2-4242 feet39′-8″575

Literature and Manuals

C-series Spec Sheet
C-Series Specification Sheet
C-Series Manual
C-Series Manual
RM-2318 Ready Mix Conveyor Spec Sheet
Quote Request Data Sheet

For more information about our RM-series portable conveyor belt, contact our team today.
