ADT-Series Truss Frame Belt Conveyor

Heavy-duty, built to length. For long runs, stacking and stockpiling.

Truss Frame Conveyor

A troughing conveyor is necessary if you want to keep loose and bulk materials from straying away from the center, particularly when managing harsher materials and traveling long distances.

For mine duty applications, the ADT series truss conveyor has a heavy-duty truss system and CEMA-rated bearing that stockpile materials like rock, gravel, stone, and sand.

The ADT-powered belt conveyor supports belt rates of up to 500 feet per minute and may be accommodated by the 35-degree troughed roller bed. Each motorized belt conveyor is custom-built to meet the requirements of the application.

  • Truss Frame

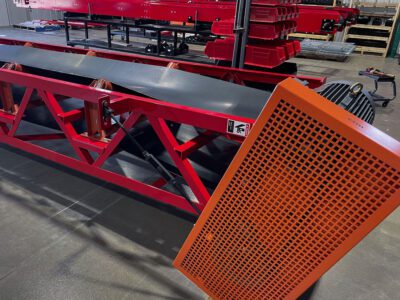

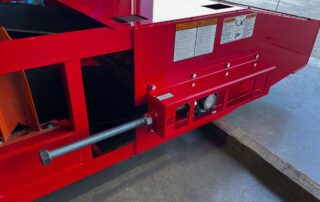

  • Adjustable Belt Take-up

  • Heavy-Duty

  • Manufacturing, Industrial, Bulk Handling

  • Troughed Belt

  • Powdercoat Finish

Click the preview image above to activate the interactive 3D model. Expand to full screen for an immersive experience.

Click here to explore all Redline Systems products in 3D.

Advantages

Built for Demanding Job Sites

Engineered with a durable, welded truss-style frame, the ADT-Series conveyor provides structural integrity and stability for demanding job sites and large-scale material transport.

Improved Containment & Cleaner Operation

Designed to help keep material on the belt, the ADT-Series reduces spillage and material carryback during operation. Improved containment helps minimize cleanup requirements and supports a cleaner, more efficient job site.

Built for Scalable Conveyor Systems

The ADT-Series is designed to operate in cascading conveyor configurations, allowing material to transfer efficiently from one conveyor to the next. This flexibility supports stacking, extended material transport, and stockpiling layouts across complex material handling systems.

Consistent Material Flow at Scale

The ADT-Series conveyor is designed to move large volumes of material efficiently and reliably. Controlled material flow and stable belt performance support consistent throughput, making it well suited for high-capacity bulk material handling applications.

Features & Accessories

Belt Cleaning System

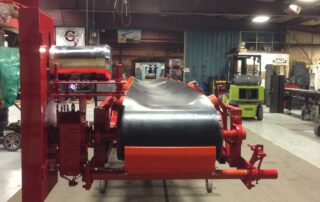

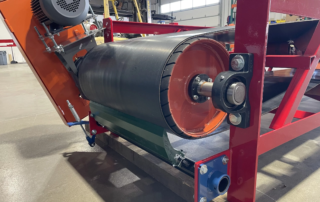

The two-stage belt cleaning system is designed to keep the return belt clean and reduce material carryback. A durable polyurethane primary cleaner removes the bulk of material at the head pulley, while a secondary carbide scraper provides aggressive, long-lasting removal of residual fines. Together, these cleaners improve conveyor efficiency, extend belt life, and reduce maintenance and cleanup time.

Troughed Belt

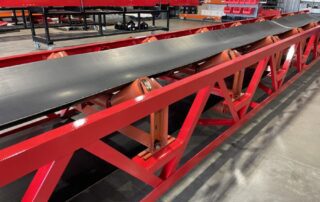

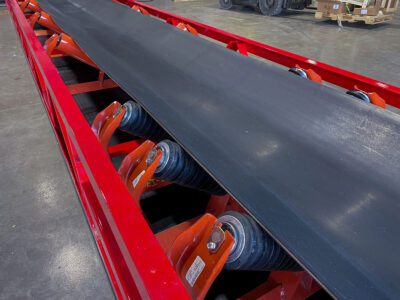

The troughed belt design helps contain material on the conveyor, reducing spillage while supporting consistent material flow. This configuration improves conveying efficiency and is well suited for handling bulk materials in demanding applications.

Versatile Power & Belt Options

Available in electric, hydraulic, gas, or diesel configurations, with optional steep-climb cleated belts to handle incline applications with ease.

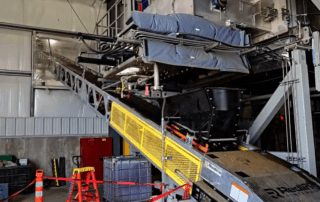

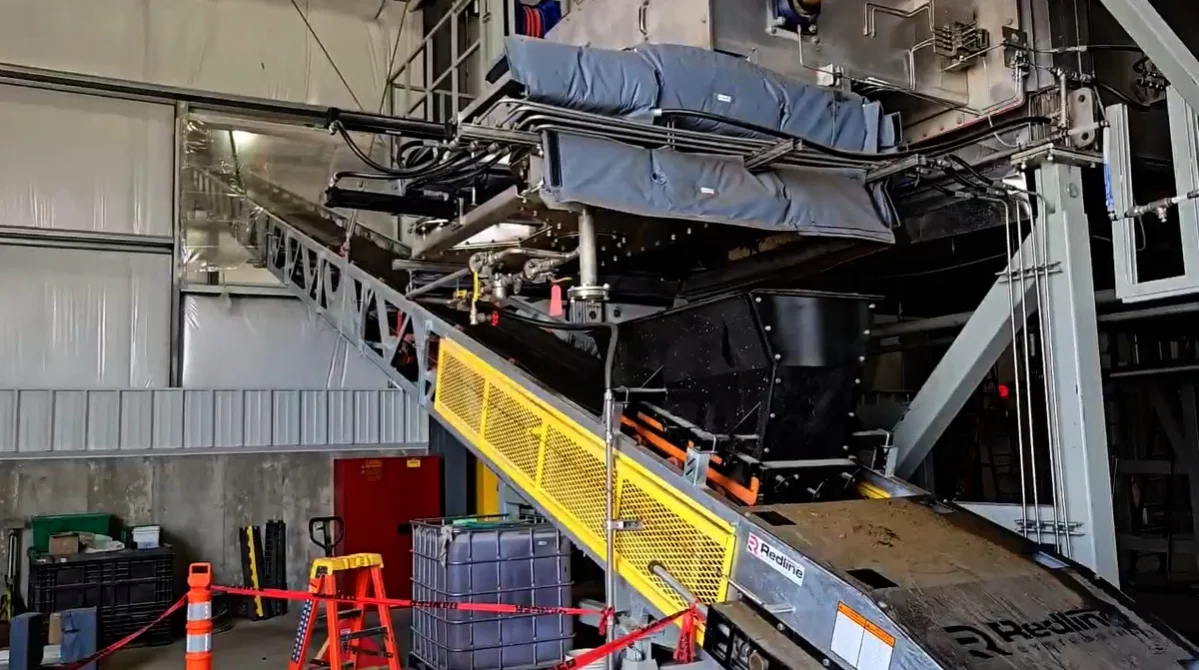

Images

Specifications

Conveyor Construction
  • Lengths: Built for Application
  • Belt Widths: 18″ | 24″ | 30″ | 36″ | 42″ | 48″
  • Belt Type: 220lb – 2ply, Smooth Top, SBR (more belt options available)
  • Bed Type: Troughed, Top Mount Idlers
  • Frame: Heavy-Duty Truss Frame
  • Finish: Powdercoated Finish
Accessories
  • Feed Hoppers
  • Belt Cleaners (Drive Pulley with 3/8″ Rubber Pulley and Self-Cleaning Standard Wing Pulley)
  • Adjustable Floor Supports
  • Controls
  • Variable Speed (VFD)
  • Containment Side Skirting
  • Discharge Chutes
  • Safety Pull Chord E-Stop
  • Special Guarding
  • Belt Covers

Modifications & Custom Builds

We modify our standard conveyors — or engineer one from scratch — to match your product, space, and throughput. Tell us what you’re moving and where, and our team will design the solution.
