The D-Series line of material handling conveyor belts are second cousins to the SD-Series. The D-Series is used when you need to move your material along a horizontal plane or slight incline. If you need to get stuff from point A to point B, the D-Series may be just the ticket.

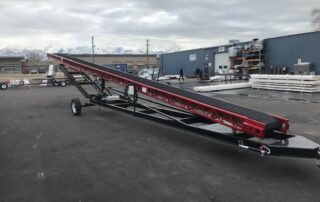

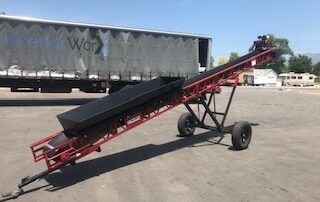

The bed of this industrial material handling conveyor belt is constructed with a 20 degree trough configuration. This is designed to prevent material from rolling off the belt during transit. The belt is supported by a center roller for additional strength. Bed widths are built in 16, 10, and 24 inch dimensions so that you can match the conveyor to your material throughput requirements. The bearings on the belt pulleys are sealed and pre-lubricated.

  • Belt Widths:  16in,  20in and 24in  (other widths available upon request)

  • Strong Truss Frame

  • Electric, Hydraulic, Gas, or Diesel Power

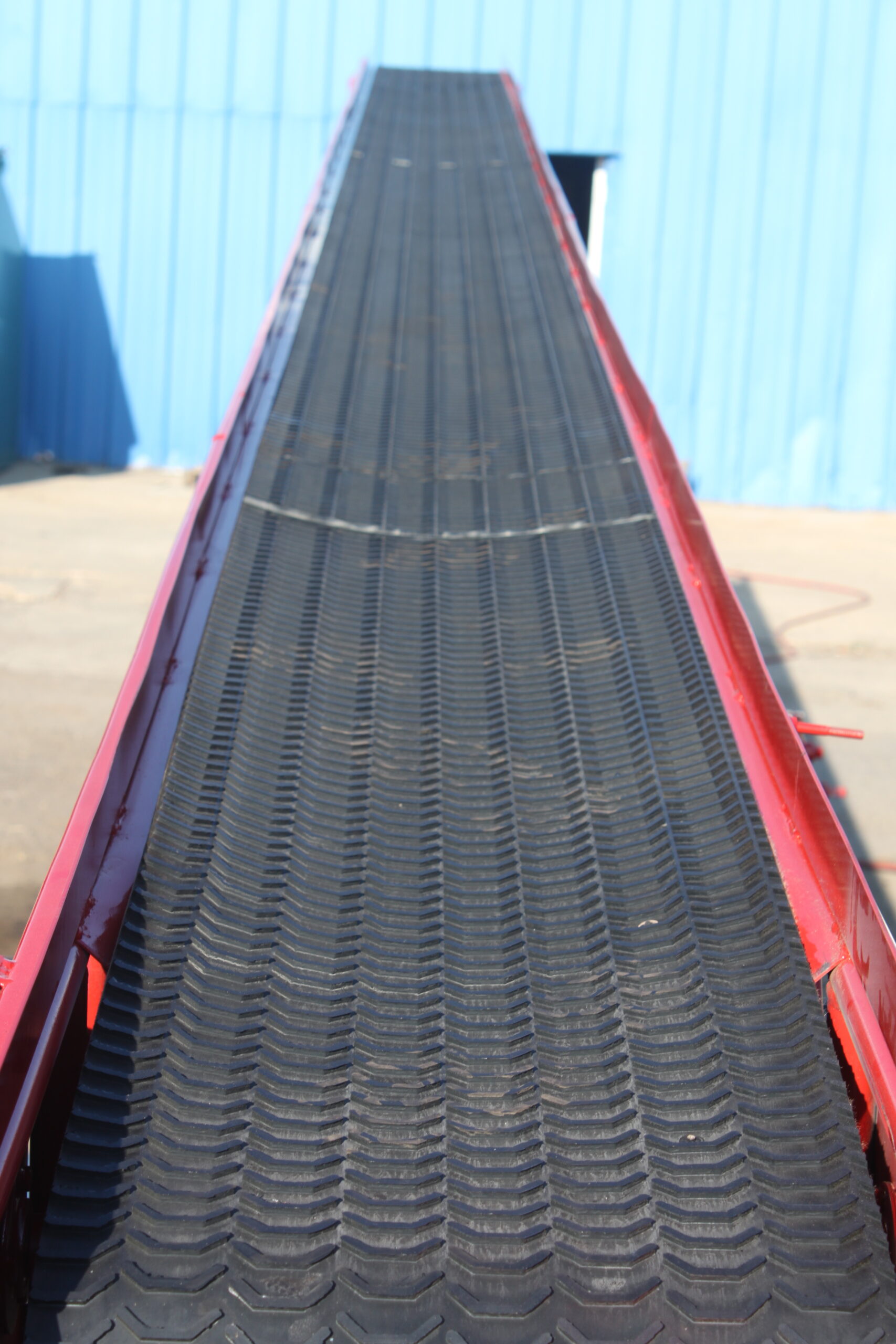

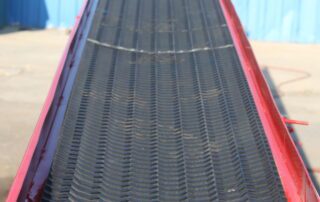

  • Aggressive Steep Climb Belt for Incline conveyance.

To discover more about our D-Series material handling conveyor belts, contact Red Line Systems today.

At Redline Systems, we are proud to offer our clients the best in material handling conveyor belt systems. With nearly four decades of experience under our belt, we know we can work with you to get you the conveyor system you need, no matter your industry.

RM-Series Dosing Conveyor

Specifications

D-Series Conveyor Features
  • Bed– 16″ 20″, or 24″ wide troughed bed.
  • Frame: Strong, Rugged Truss style welded frame.
  • Belt:  2 ply 150 black Rubber.
  • Drive: Electric, gas, or hydraulic motor available.
  • Bearings– Sealed, pre-lubricated, self-aligning, ball bearings.
  • Drive pulley– 7″ in diameter. Open caged for self-cleaning.
  • Tail Pulley– 6″ in diameter. Open caged for self-cleaning.
D-Series Models
CONVEYOR MODELOVERALL LENTHCENTER PULLEY DISTANCEWEIGHT (LBS.)
D-3-1616 feet14′-8″375
D-3-2121 feet19′-8″430
D-2-2626 feet24′-8″475
D-2-3131 feet29′-8″715
D-2-4242 feet39′-8″875

Literature and Manuals

C-series Spec Sheet

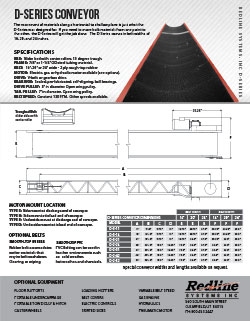

D-Series Specification Sheet
C-Series Manual

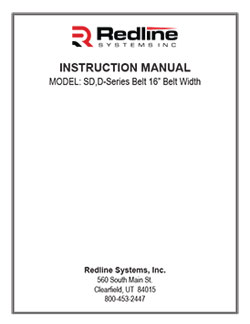

D-Series Manual
RM-2318 Ready Mix Conveyor Spec Sheet
Quote Request Data Sheet

For more information about our Belt Conveyors, contact our team today.
