RM-Series

Ready Mix, Steel Fiber, Ice, Dosing

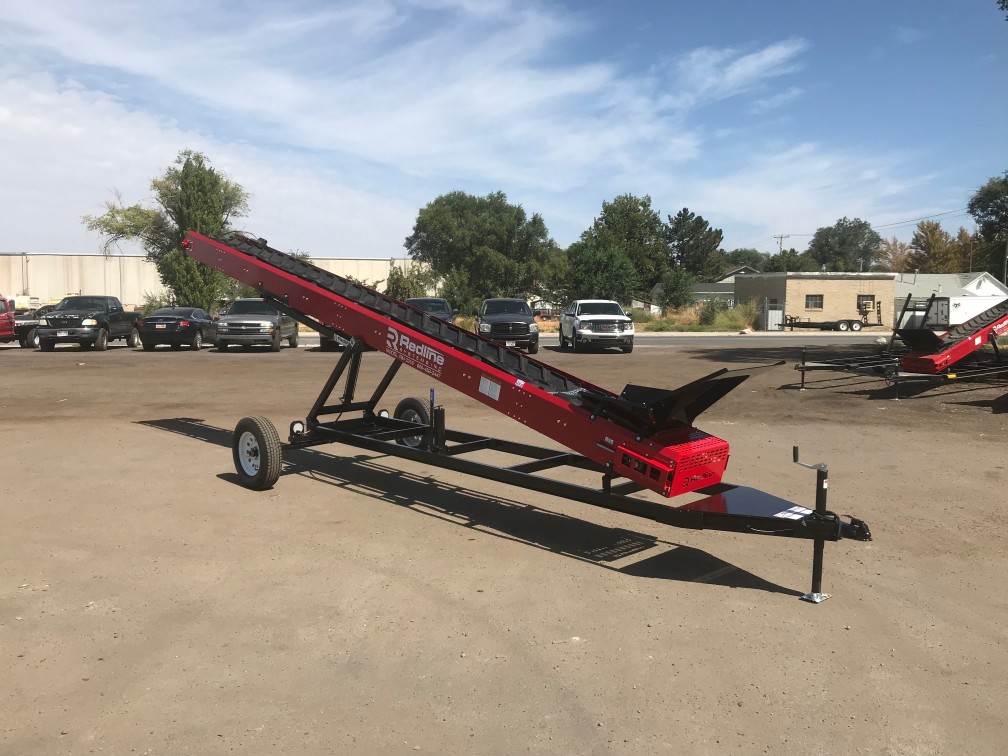

Portable Incline Conveyor

If you’re looking for a portable belt conveyor for sale, our RM-Series is the perfect solution for you. Redline Systems Inc. is proud to introduce the RM Series conveyor. The RM-2418 is the premiere ice and fiber-loading conveyor available on the market today. Boasting an adjustable reach of up to 15 feet, the RM-2418 conveyor delivers speed, efficiency, dependability and safety, unparalleled in the conveying industry. Get your portable conveyor system today and let Redline do the heavy lifting. The Redline Systems team carries over four decades of experience designing and distributing high-quality portable conveyor systems for the industry. Our number one priority is our customers’ safety. Allow our portable concrete conveyor system to make your job easier for several applications, including ready mix, steel fiber, ice, dosing, and more. There are some ready-mix plants that are not properly equipped for loading admixtures. Our RM-Series portable incline conveyor is an absolute necessity when encountering this type of situation. All units are carefully inspected after manufacturing and undergo rigorous inspections for your peace of mind.

  • 18″ wide Belt – Steep Climb Cleats

  • 35 degree deep troughing idlers

  • Heavy Duty Roller Bed

  • Adjustable Discharge Heights

  • Loading Hopper

  • Powdercoat Finish

Click the preview image above to activate the interactive 3D model. Expand to full screen for an immersive experience.

Click here to explore all Redline Systems products in 3D.

Advantages

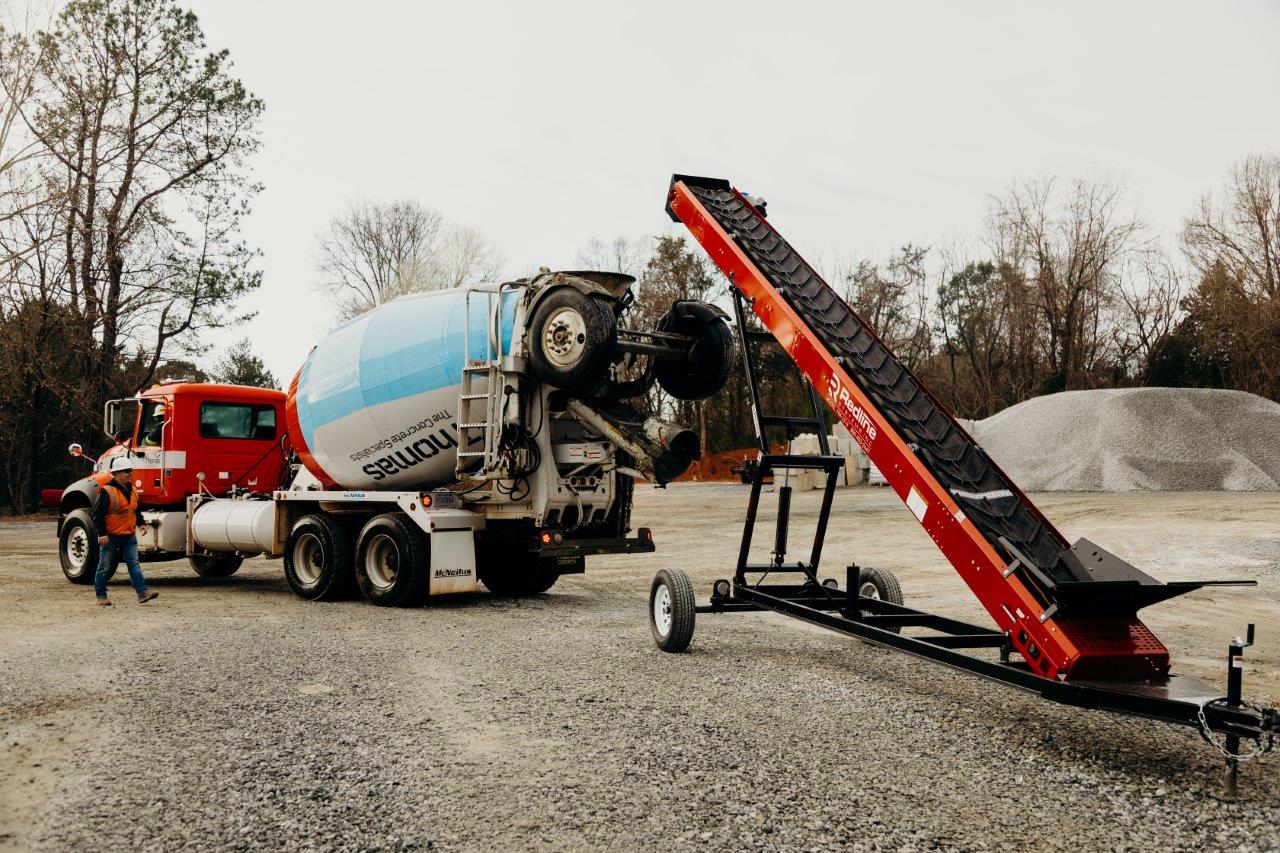

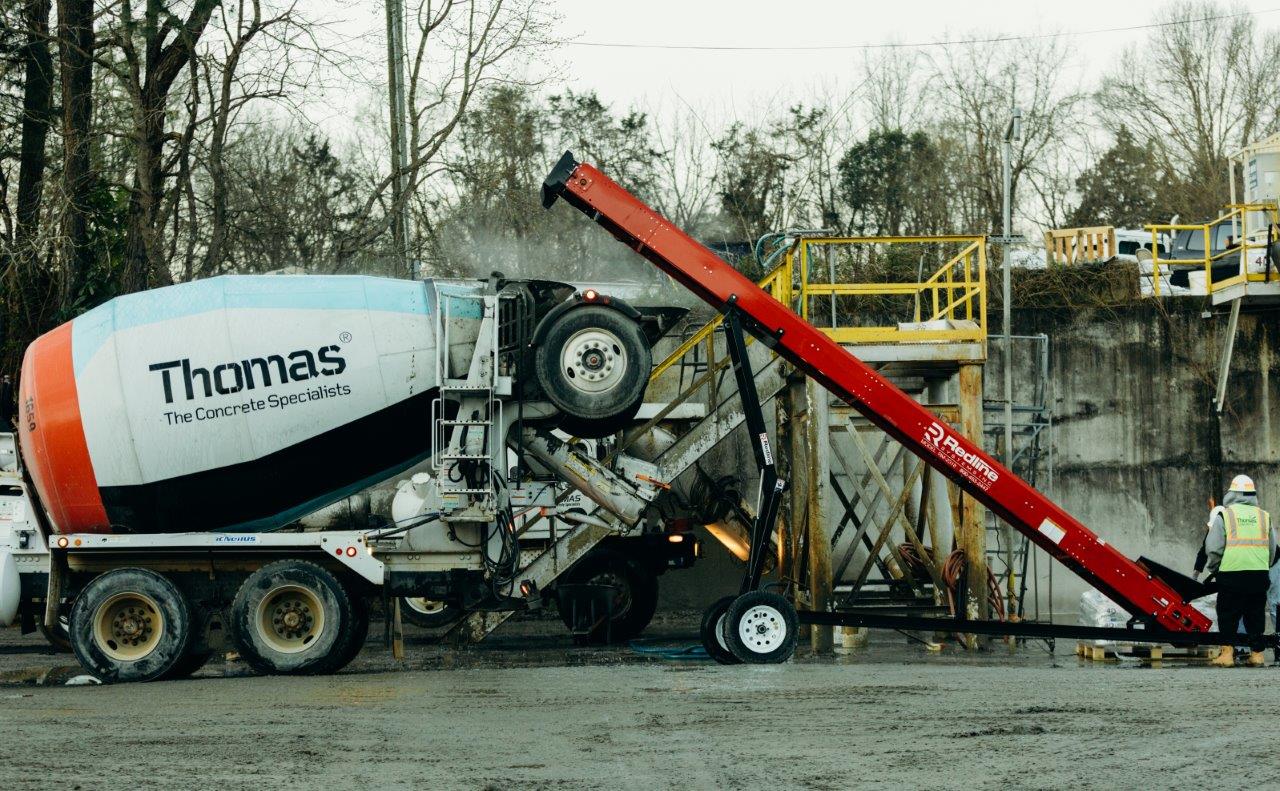

Efficient Truck & Mixer Loading

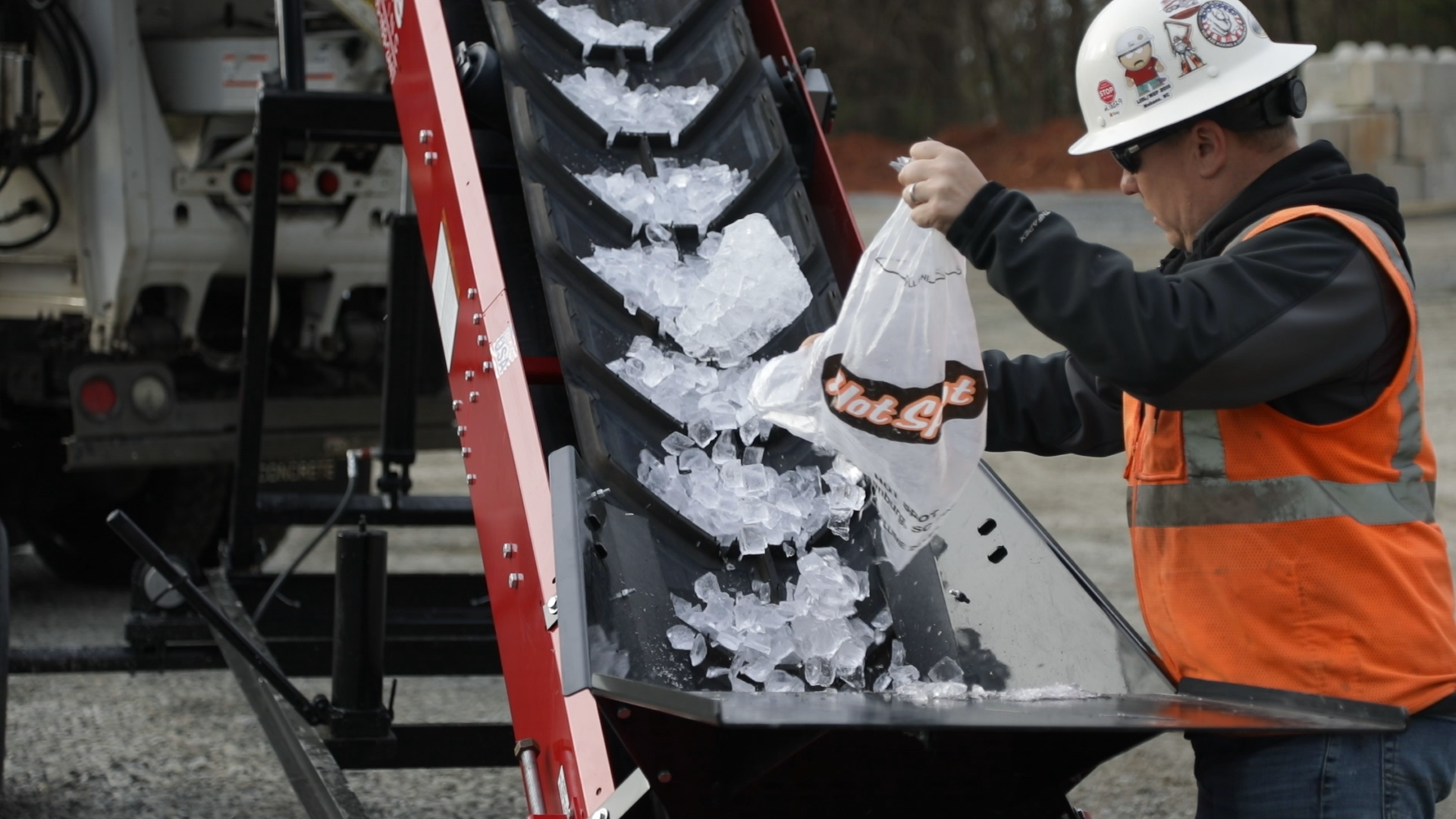

The RM Series is purpose-built to streamline material loading into ready-mix trucks and batching equipment. Its incline design delivers material smoothly and consistently from hopper to discharge, reducing loading time and keeping trucks moving. Operators can load steel fibers, ice, and dry additives directly at ground level, improving workflow efficiency while eliminating the need to work at height.

Ground-Level Operation Improves Safety

The RM Series keeps operators safely on the ground by eliminating elevated hoppers, ladders, and man lifts. Ground-level loading reduces fall risk, improves ergonomics, and simplifies daily operation, helping concrete plants maintain safer and more consistent material handling practices.

Accurate Material Dosing

Consistent dosing is critical in concrete production. The RM Series provides controlled material flow for accurate batching of steel fibers, ice, and dry additives. Reliable belt performance helps reduce waste, maintain mix quality, and support predictable production results.

Adjustable Discharge for Multiple Setups

An adjustable discharge height allows the RM Series to adapt to different truck configurations, mixer inlets, and batching layouts. The conveyor can be positioned for clean, controlled material placement without modifying surrounding equipment.

Towable & Flexible for Yard or Jobsite Use

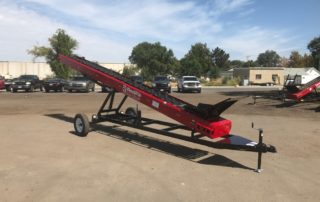

The RM Series features a towable undercarriage and hydraulic lift for quick repositioning around the plant or jobsite. One conveyor can support multiple loading points, improving utilization while reducing the need for permanent infrastructure.

Versatility Beyond Ready-Mix

While optimized for ready-mix concrete dosing, the RM Series also supports other material handling applications including bulk additives, ice, aggregates, and bagged materials—making it a flexible solution without compromising its core purpose.

Features & Accessories

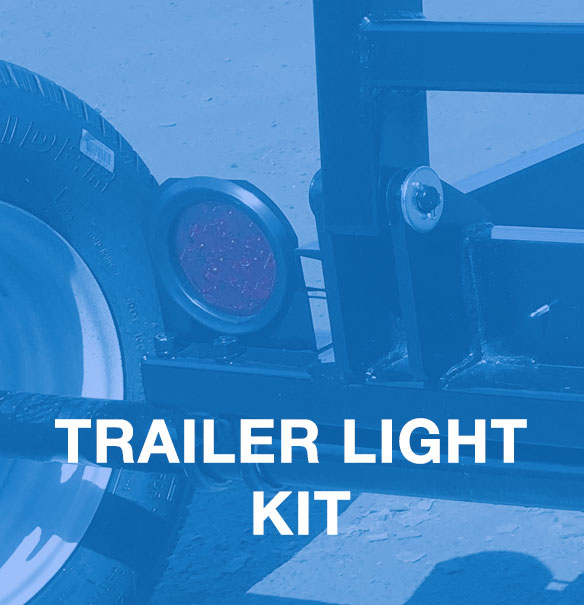

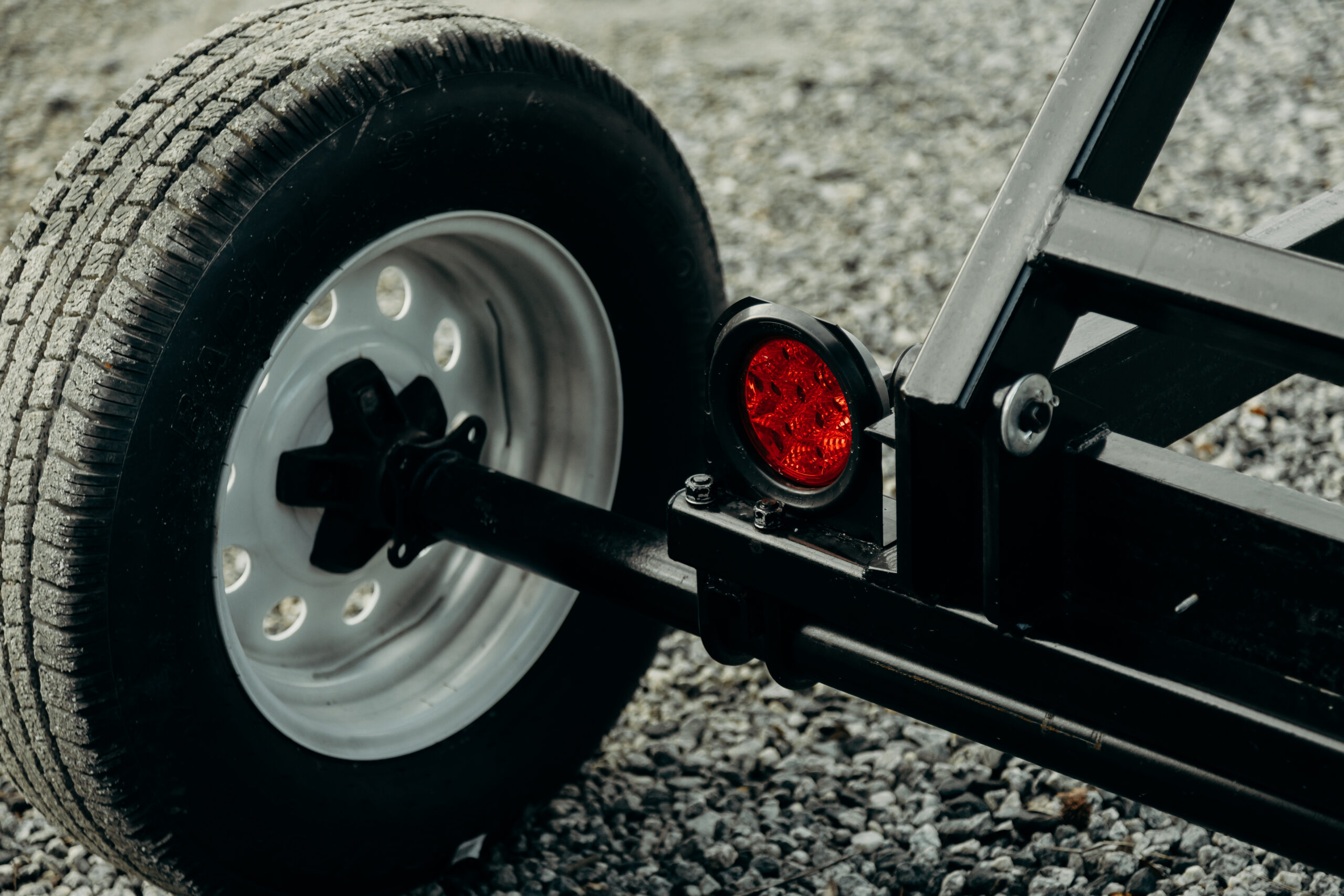

Trailer Light Kit

The integrated tail light kit enhances safety and visibility while towing. Mounted on the undercarriage, it ensures compliance with road regulations and provides reliable illumination for transport in low-light conditions.

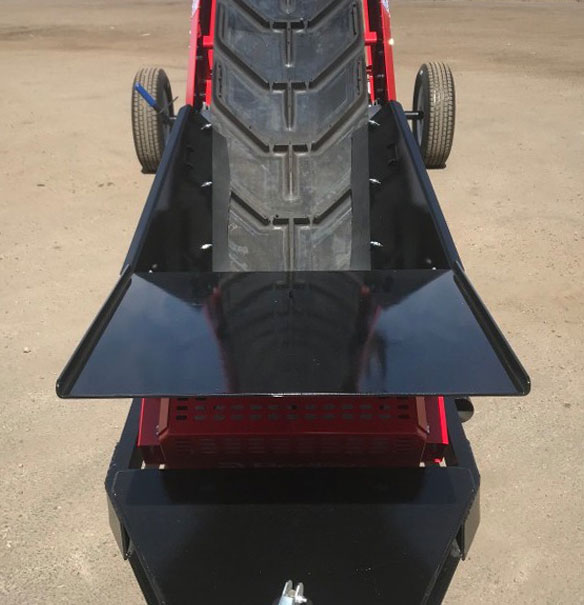

Hopper Deck with Bag Ripper Blade

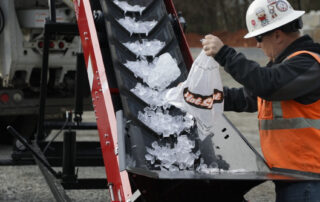

Designed for efficient loading, the hopper deck features a built-in blade that quickly slices open bags, allowing material to flow directly into the hopper. This streamlined setup reduces handling time and speeds up the loading process.

Belt Covers

Protective belt covers help contain material and shield the conveyor belt from debris and environmental exposure. The covers improve safety around moving components while keeping material on the belt and reducing cleanup.

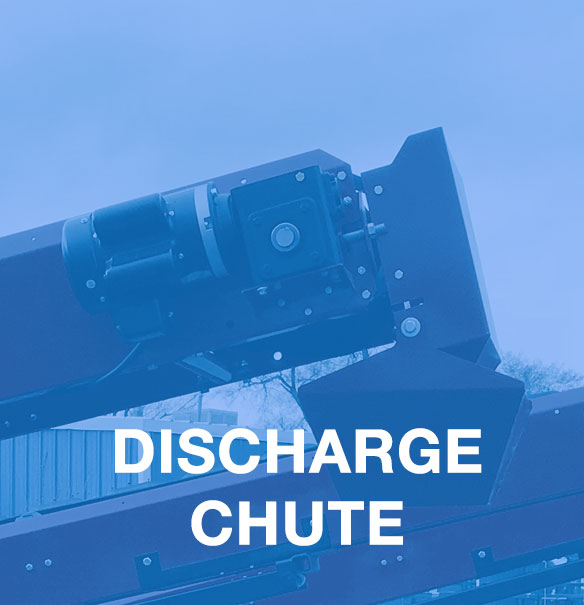

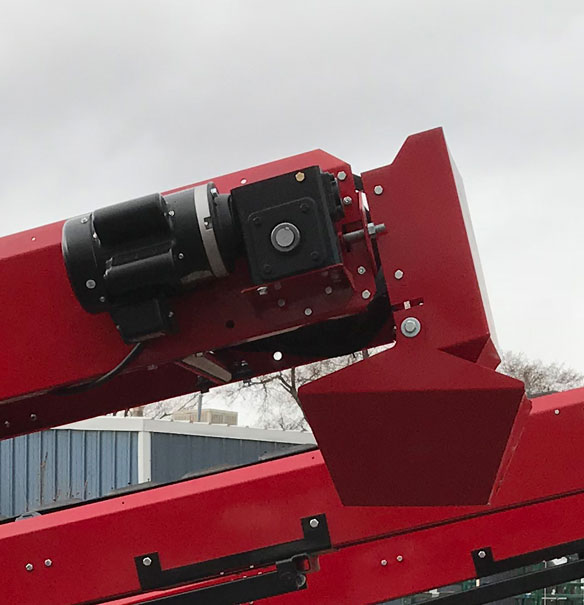

Discharge Chute

The discharge chute directs material away from the conveyor in a controlled manner, reducing spillage and material buildup. Its design promotes smooth material flow while helping maintain a cleaner, safer operating area.

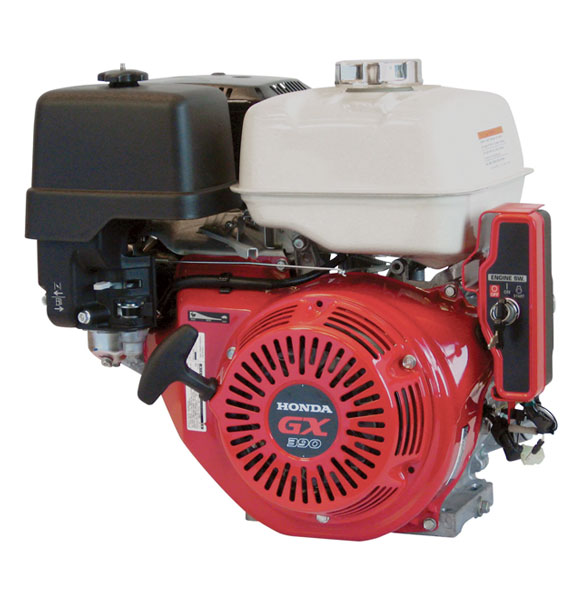

Gas Engine Drive Option

An available gas engine drive option provides independent power for applications where electrical power is not available. This option allows the unit to operate in remote or temporary locations without sacrificing performance.

Images

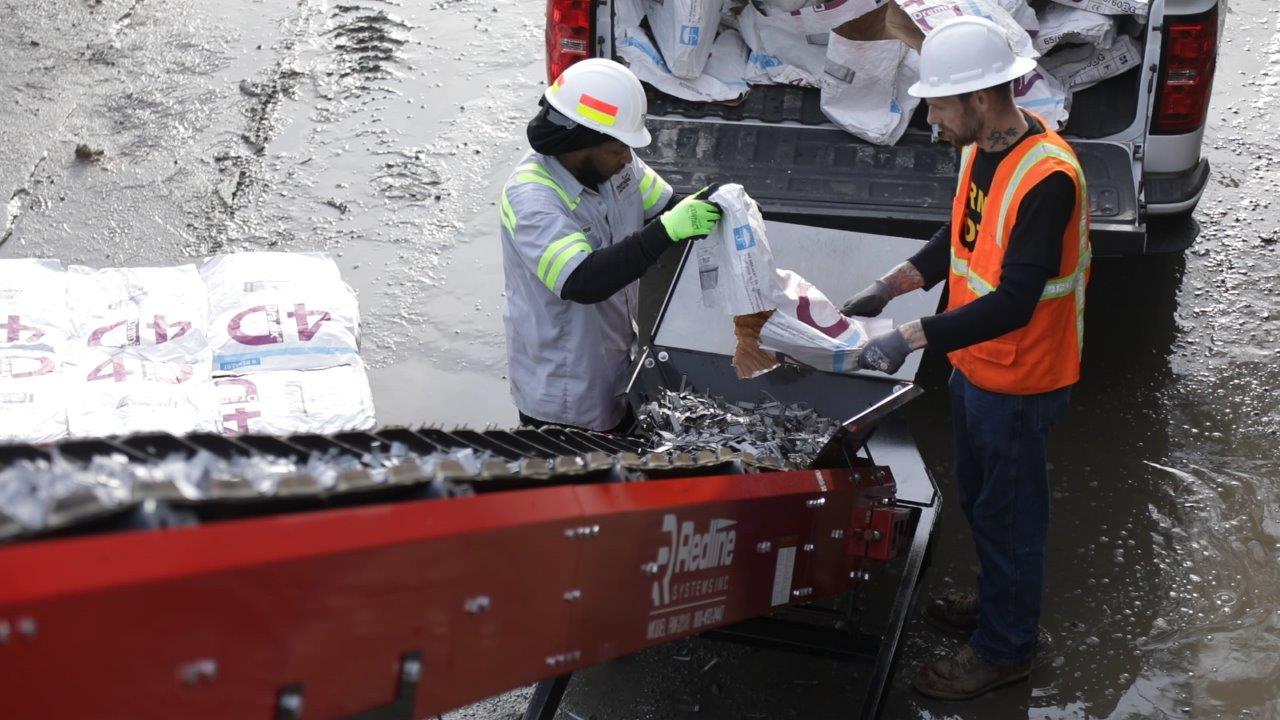

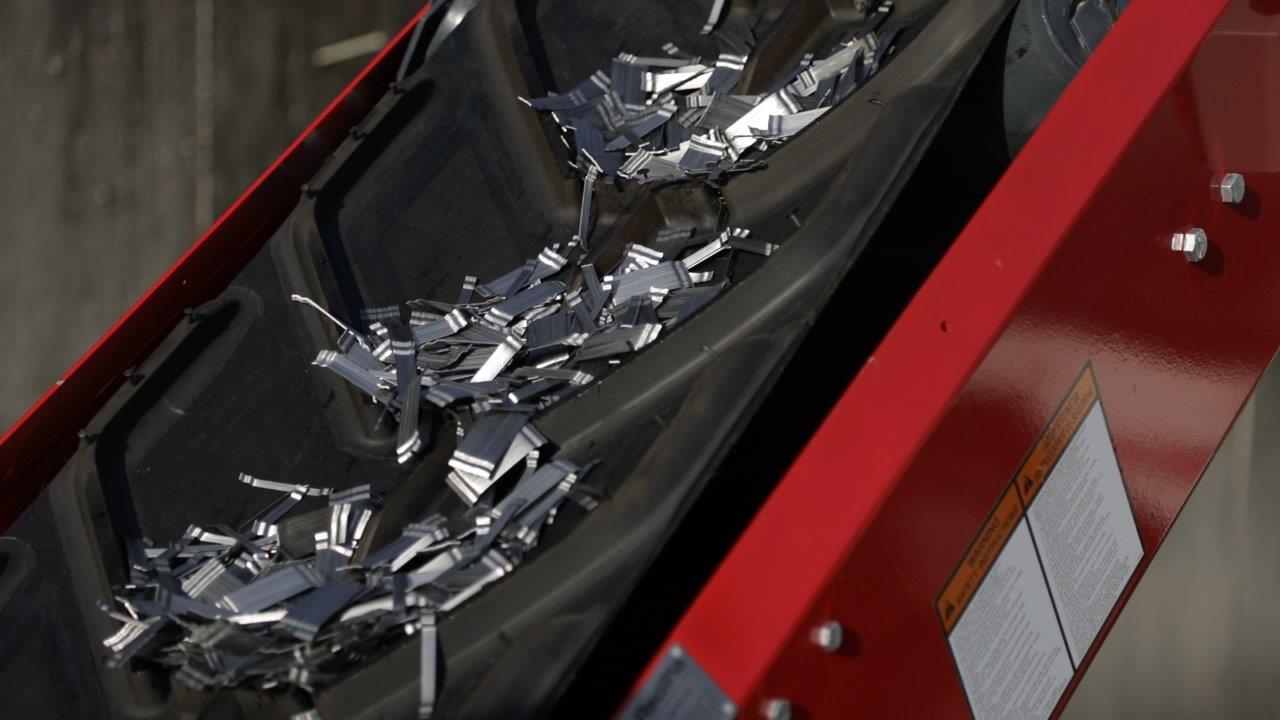

Conveyor carrying metal

Specifications

Conveyor Specifications (RM-2418)
  • Length: 24ft
  • Max Discharge Height: 14ft 9in
  • Belt Width: 18in
  • Conveyor Bed: 35° Troughing Idlers CEMA C (belt trough depth)
  • Belt Volume Rate: 80 Tons Per Hour (TPH)  @ 100 lbs. per cu. ft. product density

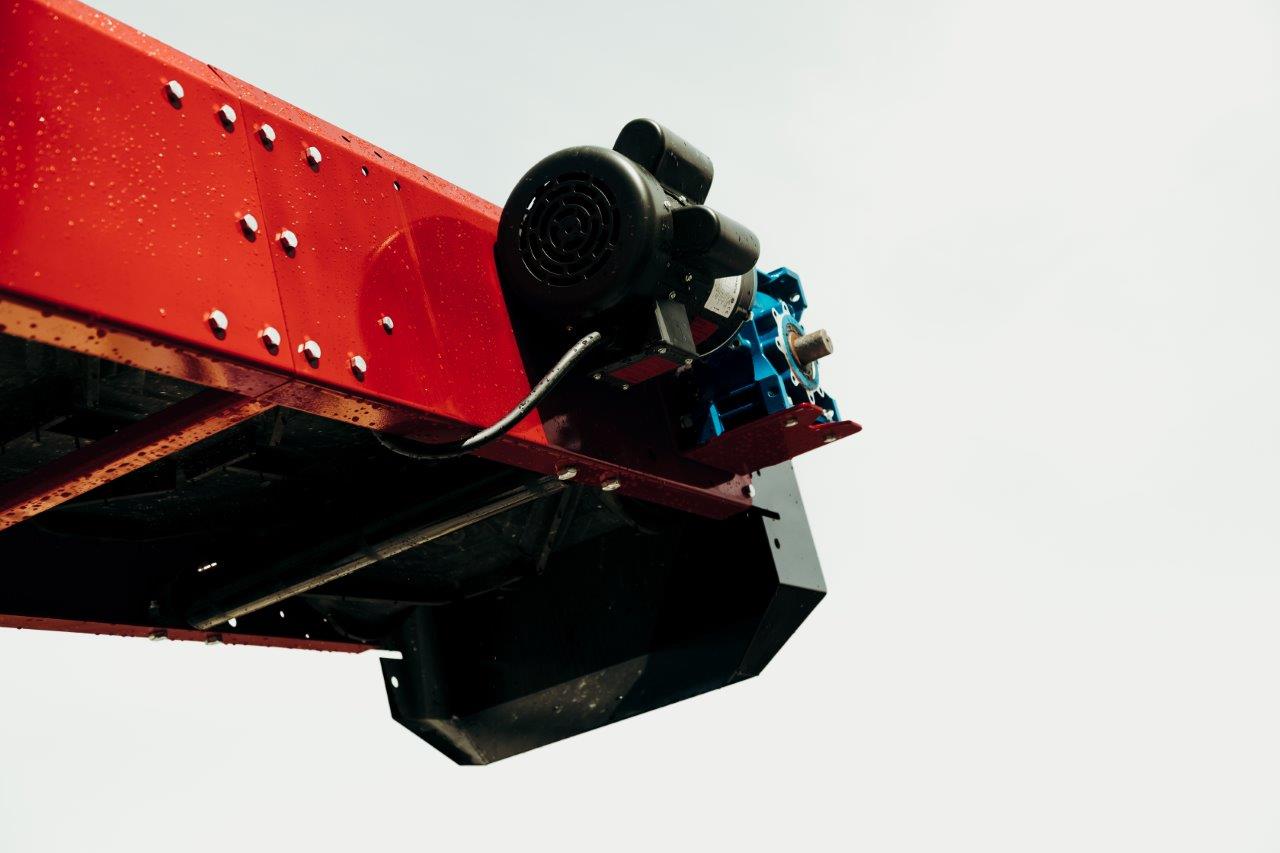

  • Power Supply: 15-18 amp (start amps) 110V power, 9-11 amp (running amps) 110V power

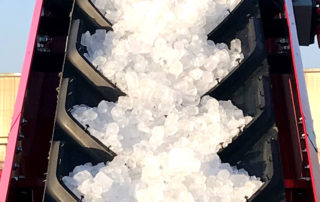

  • Belt Type: Steep Climb Belt Cleat Pattern (other belts styles available)
Undercarriage  (RM-2418)
  • 2″ Ball coupler – or – pintle ring
  • 3500 lbs capacity axle with camber
  • radial trailer tires

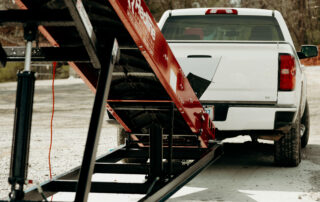

  • Hydraulic hand pump scissor lift mechanism
  • Adjustable Lift arms
  • Safety hydraulic restriction orifice valve
  • Balanced tongue weight for towing stability
  • Conveyor Rest in down position

Conveyor Specifications (RM-2818)
  • Length: 28ft
  • Max Discharge Height: 17ft
  • Belt Width: 18in
  • Conveyor Bed: 35° Troughing Idlers CEMA C (belt trough depth)
  • Belt Volume Rate: 80 Tons Per Hour (TPH)  @ 100 lbs. per cu. ft. product density
  • Power Supply: 15-18 amp (start amps) 110V power, 9-11 amp (running amps) 110V power
  • Belt Type: Steep Climb Belt Cleat Pattern (other belts styles available)
Undercarriage  (RM-2818)
  • 2″ Ball coupler – or – pintle ring
  • 6000 lbs capacity axle with camber
  • radial trailer tires
  • Hydraulic hand pump scissor lift mechanism
  • Adjustable Lift arms
  • Safety hydraulic restriction orifice valve
  • Balanced tongue weight for towing stability
  • Conveyor Rest in down position

Conveyor Specifications (RM-3218)
  • Length: 32ft
  • Max Discharge Height: 19ft
  • Belt Width: 18in
  • Conveyor Bed: 35° Troughing Idlers CEMA C (belt trough depth)
  • Belt Volume Rate: 80 Tons Per Hour (TPH)  @ 100 lbs. per cu. ft. product density
  • Power Supply: 15-18 amp (start amps) 110V power, 9-11 amp (running amps) 110V power
  • Belt Type: Steep Climb Belt Cleat Pattern (other belts styles available)
Undercarriage (RM-3218)
  • 2″ Ball coupler – or – pintle ring
  • 6000 lbs capacity axle with camber
  • radial trailer tires
  • Hydraulic hand pump scissor lift mechanism
  • Adjustable Lift arms
  • Safety hydraulic restriction orifice valve
  • Balanced tongue weight for towing stability
  • Conveyor Rest in down position

Let Us Help You

Interested in a model or have questions? Request a quote or contact us—our experts are here to help you find the right conveyor.

Request a Quote
Contact Us

Downloads

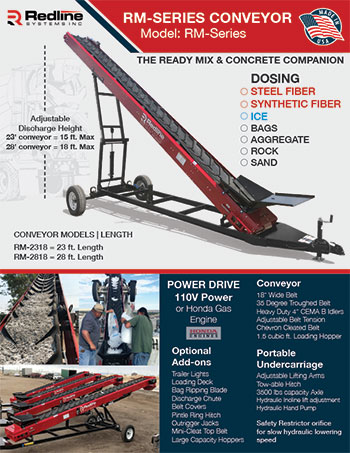

RM-Series Brochure
RM-Series Brochure

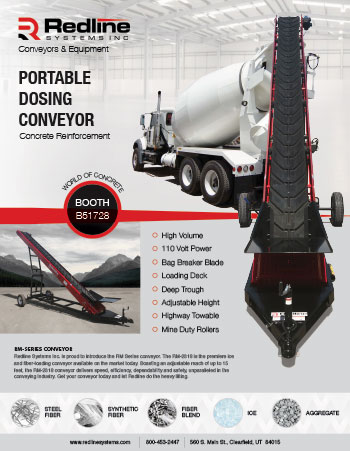

RM-2318 Ready Mix Conveyor World of concrete brochure
RM-Series Trade Show

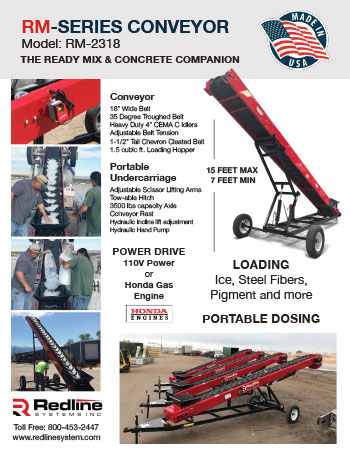

RM-2318 Ready Mix Conveyor Spec Sheet
RM-2418 Specification Sheet

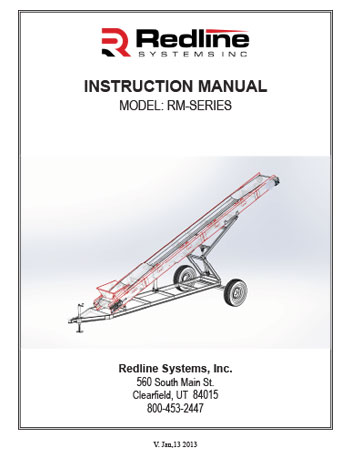

RM-Series Manual
